366-76-12
SHENPENG
Applications:

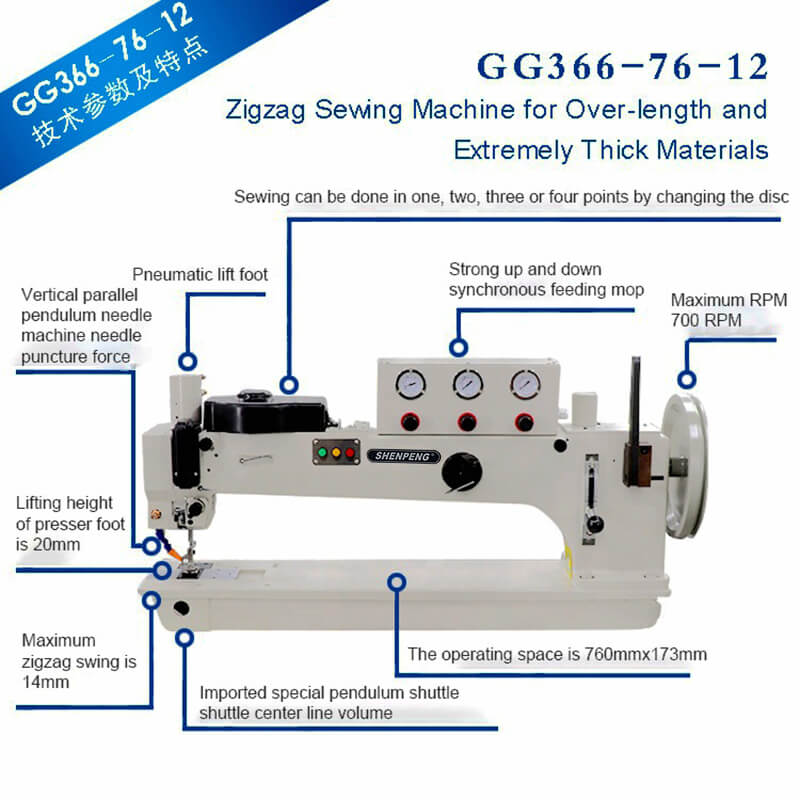

366-76-12 heavy duty safety stitch long-arm zigzag sewing machine with puller is suitable for sewing large sails (main and front sails), sails, military parachutes, aerospace parachutes, large carpets (stitching), military tents, outdoor tents, camping tents, high-end sofas and furniture (thick line stitching).
This machine can be matched with strong cloth driving wheel (top and bottom synchronous feeding) to pull the thick canvas of several hundred square meters and ensure smooth feeding. It adopts the imported large special shuttle hook with large bobbin thread capacity, which can reduce the times of bobbin thread change and improve the working efficiency. It is equipped with 4 cams used for straight stitching, one step two points, two steps three points, three steps four points zigzag sewing.
Specifications:
Model | 366-76-12 |
Maximum speed | 800r.p.m |
Maximum stitch length | 10mm(0-10) |
Zigzag maximum swing | 14mm(0-14) |
Zigzag stitching | Two points, three points, four points |
Needle bar stroke | 50.8mm |
Pick rod stroke | 106.8mm |
Needle | DY*3 27# |
Shuttle | Large semi-turn shuttle |
Presser foot lifting height | 20mm |
Lubrication method | Manual lubrication |
Operating space | 760*160mm |
Electric motor | 550w4p |
