KS-13
SHENPENG
Applications:
KS-13 craft bag sealer sealing speed is 7-10m/min, heating block power is 0.5x6kw, total power is 4kw, bag type is 3 plies paper bag with inner PE liner;
KS-13 craft bag sealer's procedure including: sewing head, trimmer, heat seal tape, heating block, press roll;
KS-13 craft bag sealer could fit with different conveyors as automatic high speed operation so that to made idea packing with lower cost. Also work with automatic packing line system to make high speed and automatic complex and perfect packing solution.

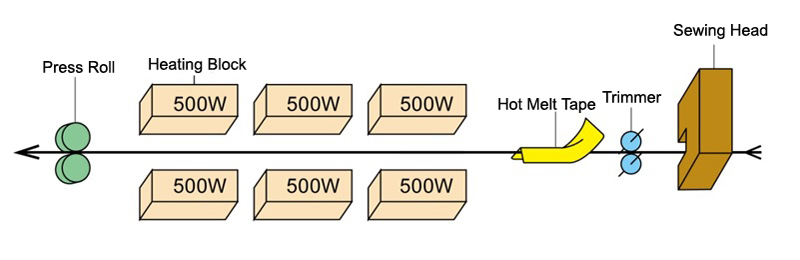

Working Process:Step1: Sewing Head→Step2: Trimmer→Step3: Hot Melt Tape→Step4: Heat Bar→Step5: Press Roll
Equipped with different auxiliary units, craft bag sealer system could make top trimming, folding, dust cleaning, stamping in one line.
KS series craft bag sealer system for different complex bag sealing, craft bag sealer machine could complete heat sealing, seaming sealing, crepe tape sealing, heat-seal tape sealing and inner film bag heat sealing.
Specifications:
Speed | 7~10 m/min |
Heating Block Power | 0.5×6 Kw |
Sewing Head Power | 0.4 Kw |
Total Power | 4 Kw |
Equipment Size [length × width × height] | 2250×1090×2052 mm |
Weight | 490 Kg |
Sewing Head | DS-7A/C/DS-11 |
Seal Height | 800~1700 mm from ground |
Sealing Temperature | 0~400℃ |
Bag Type | 3 plies paper bag with inner PE liner |
Applications:
KS-13 craft bag sealer sealing speed is 7-10m/min, heating block power is 0.5x6kw, total power is 4kw, bag type is 3 plies paper bag with inner PE liner;
KS-13 craft bag sealer's procedure including: sewing head, trimmer, heat seal tape, heating block, press roll;
KS-13 craft bag sealer could fit with different conveyors as automatic high speed operation so that to made idea packing with lower cost. Also work with automatic packing line system to make high speed and automatic complex and perfect packing solution.
Working Process:Step1: Sewing Head→Step2: Trimmer→Step3: Hot Melt Tape→Step4: Heat Bar→Step5: Press Roll
Equipped with different auxiliary units, craft bag sealer system could make top trimming, folding, dust cleaning, stamping in one line.
KS series craft bag sealer system for different complex bag sealing, craft bag sealer machine could complete heat sealing, seaming sealing, crepe tape sealing, heat-seal tape sealing and inner film bag heat sealing.
Specifications:
Speed | 7~10 m/min |
Heating Block Power | 0.5×6 Kw |
Sewing Head Power | 0.4 Kw |
Total Power | 4 Kw |
Equipment Size [length × width × height] | 2250×1090×2052 mm |
Weight | 490 Kg |
Sewing Head | DS-7A/C/DS-11 |
Seal Height | 800~1700 mm from ground |
Sealing Temperature | 0~400℃ |
Bag Type | 3 plies paper bag with inner PE liner |
Our Services:
1.Pre-sale consultation service;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5. Offer quality products with competitive price;
6.Maintenance,spare parts services and technical support;
7. Bag closing, FIBC sewing and heavy duty sewing solutions;
8. Quality inspection, delivery time control, logistics and related documents arrangement service.
Attentions:
1.Please oil the machine throughly before running;
2.Please follow the safety instruction strictly before put the machine into operation;
Our Services:
1.Pre-sale consultation service;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5. Offer quality products with competitive price;
6.Maintenance,spare parts services and technical support;
7. Bag closing, FIBC sewing and heavy duty sewing solutions;
8. Quality inspection, delivery time control, logistics and related documents arrangement service.
Attentions:
1.Please oil the machine throughly before running;
2.Please follow the safety instruction strictly before put the machine into operation;
